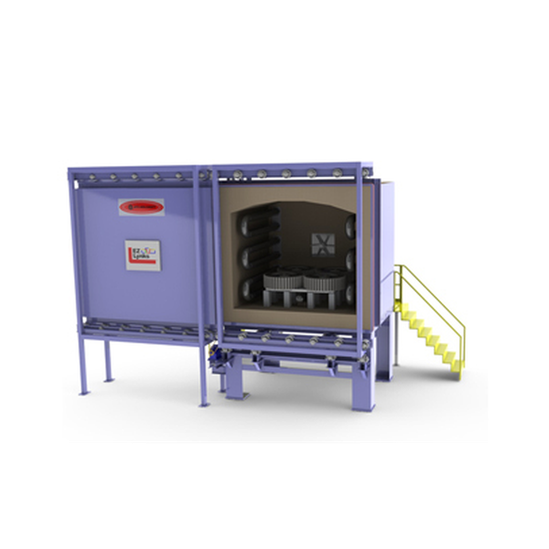

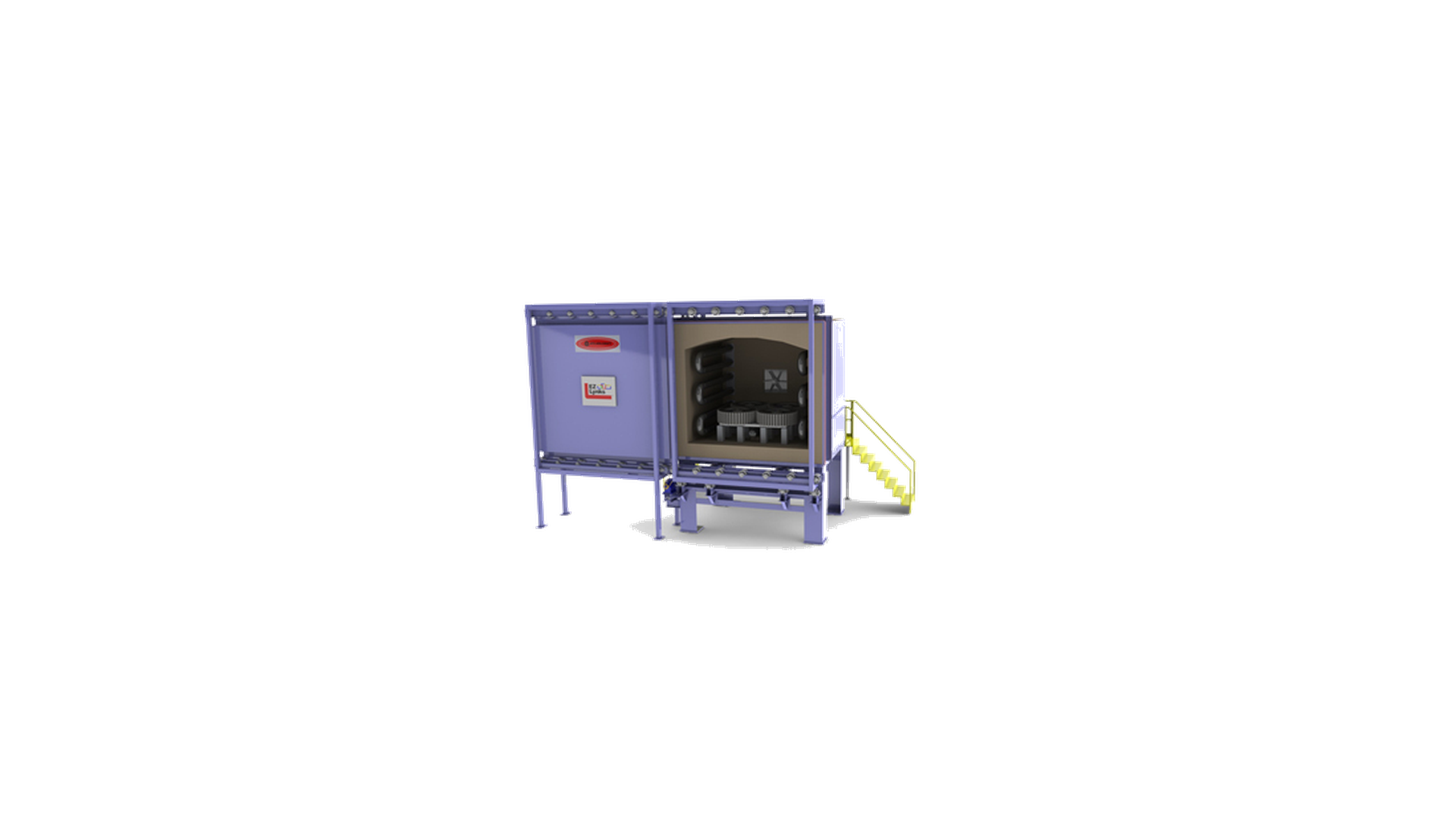

AFC-Holcroft EZ Lynks – flexible single-layer system for large-load heat treatment
Product details
- Maximum Load CapacityUp to 15,000 lb (6,800 kg)
- Work Envelope84 in L × 84 in W × 36 in or 72 in H (2.1 × 2.1 × 0.9 / 1.8 m)
- Typical Component SizeGears up to 84 in Ø (2.1 m); shafts up to 70 in high (1.8 m)
- Installation Requirements≤ 18.5 ft (5.6 m) ceiling height — no pit required
- Quench System OptionsOil (standard), with water, salt, or polymer available
Flexible large-load heat-treating system - no pit, no crane, no compromise
EZ Lynks from AFC-Holcroft is a single-layer heat-treating concept for large parts used in industries such as alternate energy, mining, marine, and earth-moving equipment. It delivers the same process precision as a UBQ batch cell while eliminating the need for pits or bridge cranes. Installation requires no building modification, and its modular layout simplifies expansion and integration into existing production lines
Technical features at a glance:
Ceiling height requirement ≤ 18.5 ft (5.6 m) — no pit required
Single or tall single-layer furnace designs available
Automated transfer shuttle replaces manual bridge crane handling
Recipe-specific fluid flow quench reduces distortion and saves post-grinding time
Flexible quench media options: oil, water, salt or polymer
Expandable system design with 3 to 5 modules (furnace, shuttle, quench, washer, temper)
Key Benefits for Your Operation
Compact installation, maximum capacity
Process loads up to 15,000 lb without pits or overhead cranes.
Reduced distortion & rework
Controlled fluid flow minimizes quench-related distortion and reduces grinding hours.
Safety & automation
Automated shuttle and protected quench zone lower labor risk and exposure to open oil flames.
Flexible and expandable
Scalable cell design lets plants start small and expand capacity as production grows.
Proven reliability
Leverages decades of AFC-Holcroft engineering heritage for consistent industrial performance.
Designed for Large-Load Performance
The following table outlines key technical parameters and system configurations for the EZ Lynks large-load heat treatment system, including load capacity, work envelope, and installation requirements.
Reliable service throughout your entire system lifecycle
We support our customers throughout the entire lifecycle of their systems – from commissioning to ongoing operation, modernization and digital integration.
FAQ – AFC-Holcroft EZ Lynks
